KFLOP contains a UART that can allow KFLOP User C Programs to perform serial communication with other 3rd party devices.

KFLOP itself contains the serial communication UART but does not have the circuitry to drive or receive the signals at the +3 to 25V to -3 to -25V voltages levels specified by the RS232 standard. The transmit and receive signals to/from KFLOP are 3.3V LVTTL logic signals. Where a low logic level (<0.4V) represents the RS232 Space Level (>+3V) and a high logic level represents the RS232 Mark Level (< -3V).

Note that the signals that the signals coming directly from KFLOP are not RS232 compatible. Connecting KFLOP inputs directly to RS232 is likely to cause damage.

Some serial devices may be compatible with 3.3V logic. Also many 3rd party converters are available. A Internet search found this one (we haven't tested it).


Our Kanalog board has a LVTTL to converter on board (see next section below).



KFLOP + Kanalog - RS232

Kanalog contains circuitry to convert the KFLOP UART logic levels to standard RS232 voltage levels. The RS232 signals are accessible from JP10 which is a standard RJ12 phone jack.

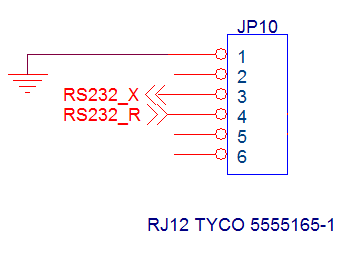

The pinout is shown below. The pinout is designed to be 1:1 compatible with certain PLC devices. Note that a phone cable with all 6 wires populated is required in order to make the pin 1 ground connection.



The KFLOP FPGA implements a programmable baud rate UART with double buffering of 1 character on transmit and receive. Currently a KFLOP User C program must be used to make use of the UART. It is up to the User to program whatever is necessary to control any specific device.

KFlop User Programs with 1 active thread execute every 180us. (See here for more info). This allows rates up t0 38400 baud without loss if a character is read every time slice (10 bits at 38400Hz = 260us). Data transmitted and received is always 8 bits. If parity is required it should be handled by the User C program.

To set the baud rate write a defined 8-bit baud rate divisor to an FPGA Register (RS232_BAUD_REG )

To transmit a character an 8-bit character is written to an FPGA register (RS232_DATA).

To receive a character read an 8-bit value from an FPGA register (RS232_DATA )

A status register (RS232_STATUS) provides 2 bits of status that can be used to determine if a character has been received (RS232_DATA_READY) and if it is possible to transmit a character (RS232_TRANSMIT_FULL)

The following definitions have been added to the KMotionDef.h file.

	//RS232 FPGA Register Definitions

	#define RS232_STATUS 0xc1 // Status Reg Address
	#define RS232_DATA 0xc0 // 8 bit data read/write reg address
	#define RS232_DATA_READY 0x01 // Data ready to read status mask
	#define RS232_TRANSMIT_FULL 0x02// Transmit buffer full status mask

	#define RS232_BAUD_REG 0xc1 // Set Baud rate 8-bit divisor Reg Address
	#define RS232_BAUD_115200 ((16666666/115200/16)-1)// 8-bit divisor value to set 115200 baud
	#define RS232_BAUD_57600 ((16666666/57600/16)-1) // 8-bit divisor value to set 57600 baud
	#define RS232_BAUD_38400 ((16666666/38400/16)-1) // 8-bit divisor value to set 38400 baud
	#define RS232_BAUD_19200 ((16666666/19200/16)-1) // 8-bit divisor value to set 19200 baud
	#define RS232_BAUD_9600 ((16666666/9600/16)-1) // 8-bit divisor value to set 9600 baud
	#define RS232_BAUD_4800 ((16666666/4800/16)-1) // 8-bit divisor value to set 4800 baud

Note if KFLOP is to be used without Kanalog the UART IO pins must be activated by executing the following line of code one time:


Note: The techniques shown below may be used but a new simpler and buffered method is now available.
See the \C Programs\RS232\BufferedRS232.c example.

Transmit Example (RS232Send.c example)

	#include "KMotionDef.h"
	void SendChar(char c)
 		while (FPGA(RS232_STATUS) & RS232_TRANSMIT_FULL);
 		FPGA(RS232_DATA) = c;

 		int i;
 		FPGA(RS232_BAUD_REG) = RS232_BAUD_38400;
 		// FPGA(KAN_TRIG_REG) = 1; // enable Kanalog to get RS232 working
 		for (i=0;i<100;i++)

Receive Example (RS232Read.c example)

	#include "KMotionDef.h"

	void ReceiveChar()
 		// wait for data in buffer
 		while ((FPGA(RS232_STATUS) & 1)==0);
 		return FPGA(RS232_DATA);

 		FPGA(RS232_BAUD_REG) = RS232_BAUD_38400;
 		// FPGA(KAN_TRIG_REG) = 1; // enable Kanalog to get RS232 working
 		for (;;)
 			while ((FPGA(RS232_STATUS) & RS232_DATA_READY) == 0) ;
